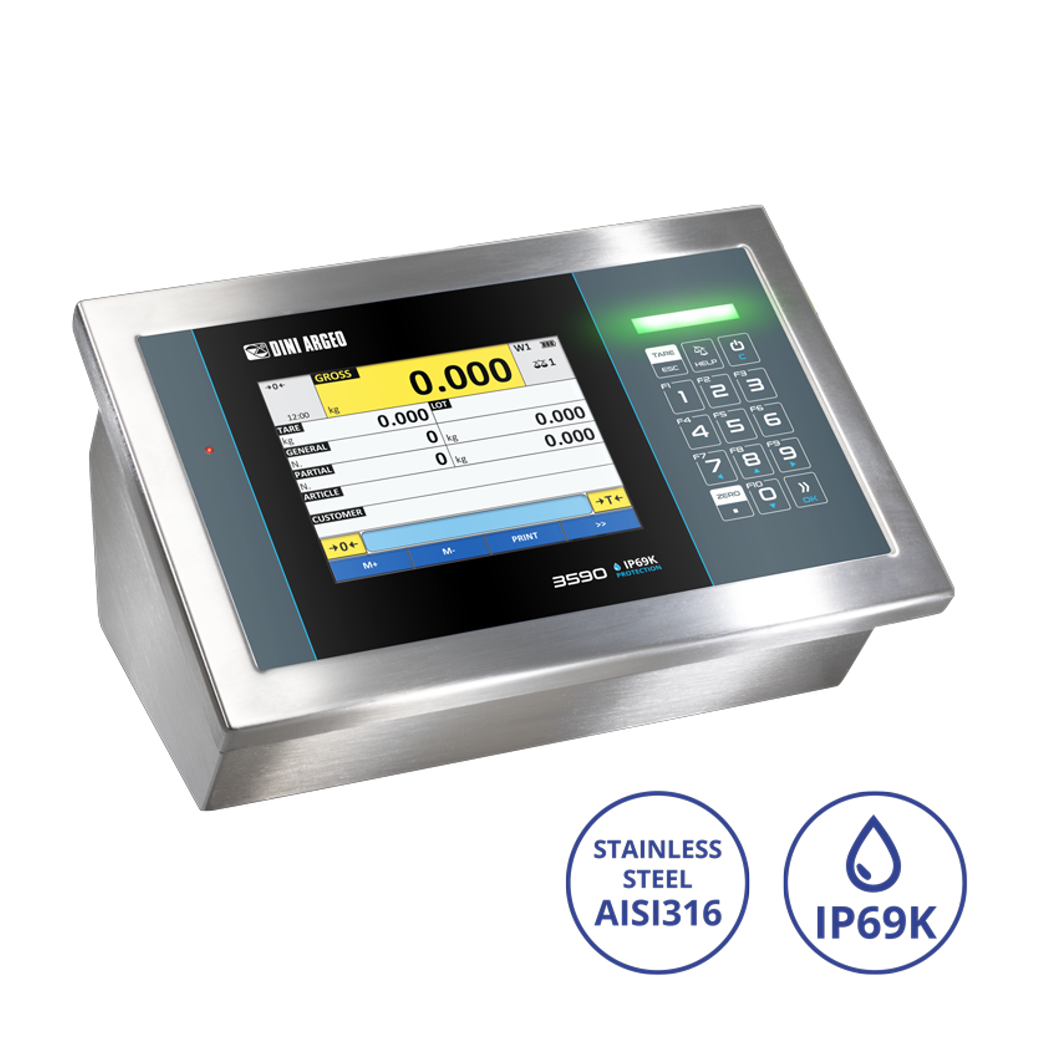

3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements

3590EGT HYGIENX: new stainless steel touchscreen weight indicator for environments with high hygiene requirements

Weighing Technology

Information

MAIN FEATURES Touchscreen backlit graphic display , dimensions lxh= 120x90 mm. Multilanguage software. Waterproof alphanumeric keyboard with 15 keys. Traffic light with 3 colors. Touchscreen keyboard type QWERTY, AZERTY or QWERTZ, selectable. AISI 316 stainless steel case. IP68/IP69K certification against water, dust and high pressure hot water jets. Dimensions: 280x143x185 mm. Suitable for use on a table, column or wall. Calendar clock and permanent data memory. Alibi Memory as standard, integrated on the motherboard. Internal micro SD slot (optional) for saving logos. Functions available with DiniTools utilities:- Configuration, data entry and print formatting.- Storage and archiving of all information on PC.- Complete configuration back-up.- Customization of displays. A/D converter 24 bit, 4 channels, up to 3200 conv./sec. with autoselect and up to 8 signal linearization points. 4 independent analogue channels for reading the weight. Management of up to 16 analogue load cells of 350 Ohm (45 cells at 1000 Ohm). Max. 10.000e or multirange 3 x 3000e @ 0,3 µV/e in CE-M approved version. Max. 1.000.000 displayable divisions for internal factory use with internal resolution up to 3.000.000 points. Connectable to printers and labellers with free programming of the printing formats. 110-240 Vac power supply through a 1.5 m cable with Shuko socket.
Dini Argeo S.r.l.S3-D53Dini Argeo is a company specialising in the design and manufacturing of scales and weighing systems worldwide-known for quality and reliability. The solutions created by Dini Argeo are suitable for any industrial weighing application: • reading, collection, processing and transfer of weight data • simple, sequential, simultaneous dosage, in-loading or unloading, single or multicomponent dosage, continuous dosage on belt conveyors or loss-inweight feeding. • weighing in areas endangered by potentially explosive atmospheres (ATEX) • piece counting, labelling • control of production lines, statistical check of prepackaged products • logistics weighing (pallet scales, pallet truck scales, weighing forks for lift trucks, crane scales) • vehicle weighing (weighbridges, wheel weighers, static and dynamic axle weighers). A full range of interfaces and communication protocols is available as standard thus making Dini Argeo products easily integrable into industrial automation and processing for the development of OEM systems with customizable functions. Dini Argeo boasts over 100 years of experience in the area of weighing, batching and industrial automation. The company offers state of the art technology, which guarantees the highest levels of precision, keeping to international standards. In the fall of 2016, Dini Argeo was acquired by Rice Lake Weighing Systems. The two brands' strong history and ideals will increase customers' product and service offering in Europe and around the world.
