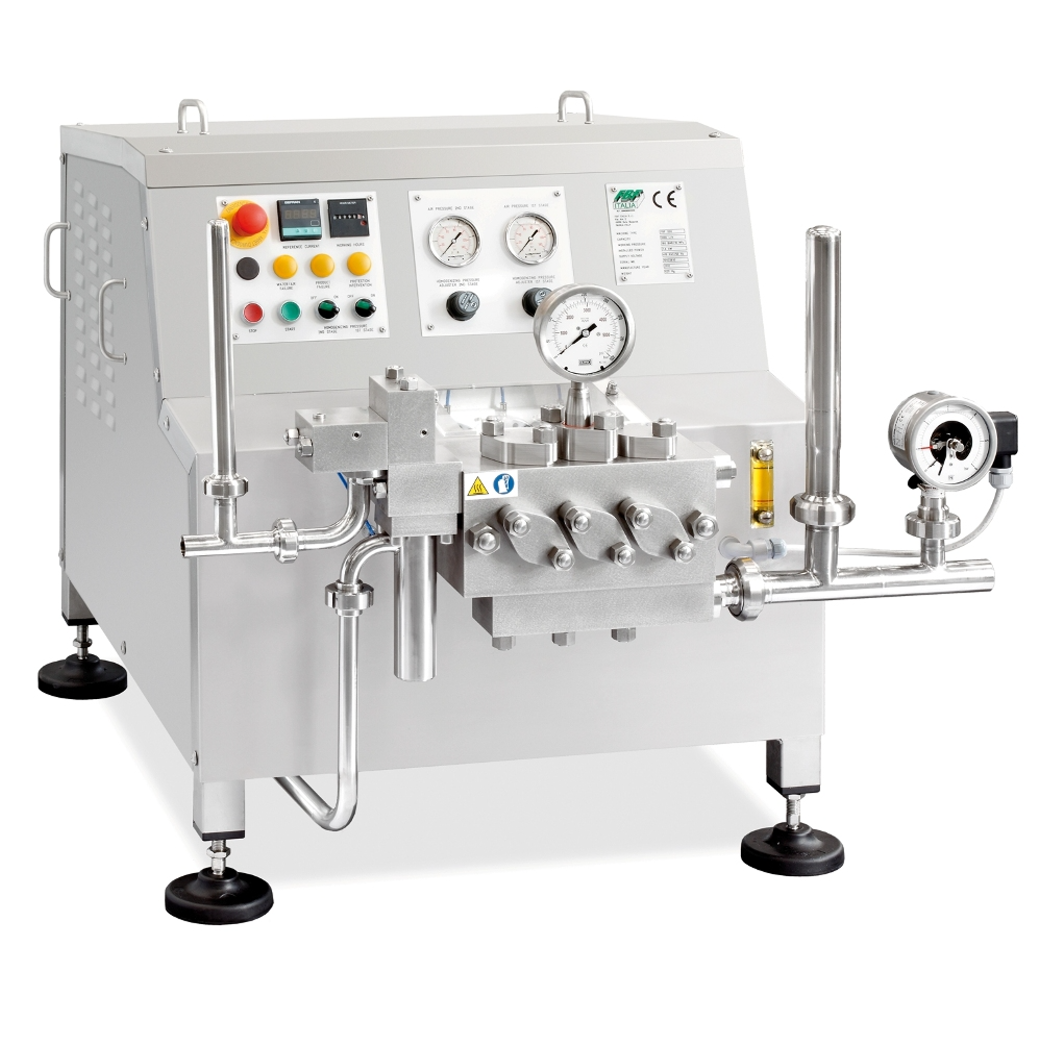

HIGH PRESSURE HOMOGENIZERS (CAPACITY UP TO 2.000 LPH)
Beverage Equipment & Supplies
Information
COMPRESSION HEAD AND
HOMOGENIZING VALVE
- Compression head manufactured from a
single block (easy and fast maintenance) of
high quality stainless steel (duplex 2205 or
equivalent), with a 3 year guarantee against
cracking.
- Plungers in stainless steel with double coating
in chrome and DLC (Diamond Like Carbon).
- Interchangeable Valve group assemblies
available in special materials depending on the
products to be processed.
- Homogenizing valves designed to be energy
efficient, with high stability and alignment of
the moving parts (impact head) due to the
hydrodynamic assembly, which ensures a
vibration free homogenization.
- Safety valve, in sanitary execution, of spring
type with replaceable shutter and seat.
MOTORIZATION - STRUCTURE
- Pump body made using a thick walled premium
grade high-resistance cast iron, engineered
to withstand heavy loads and cancel out
vibrations.
- Crankshaft made of special type steel,
machined from a heat treated solid piece with
high-quality finishing of the crank pins and
complete nitriding; supported by heavy-duty
roller bearings (with bronze bearings used on
the crank pins only).
- Power transmission with a double reduction
stage: “V” belts/ pulleys, with parallel axes
reduction gear of primary brands.
- AC motor of primary brands (4 poles).
- Oil splash type lubricating plant, in oil-bath
mechanical components, correct oil level
checked by a proper inspection window
installed on the machine front side.
- Structure entirely made of stainless steel
square-section pipe frame, provided with
separate stainless steel panels with satin finish.
MAINTENANCE KIT
- Initial spare parts set supplied with the
machine includes the following: full set of
gaskets, a set of valve springs and a complete
safety valves set.
- Set of tools for ordinary maintenance.
- Lubrication oil.
- Instruction and maintenance manuals
