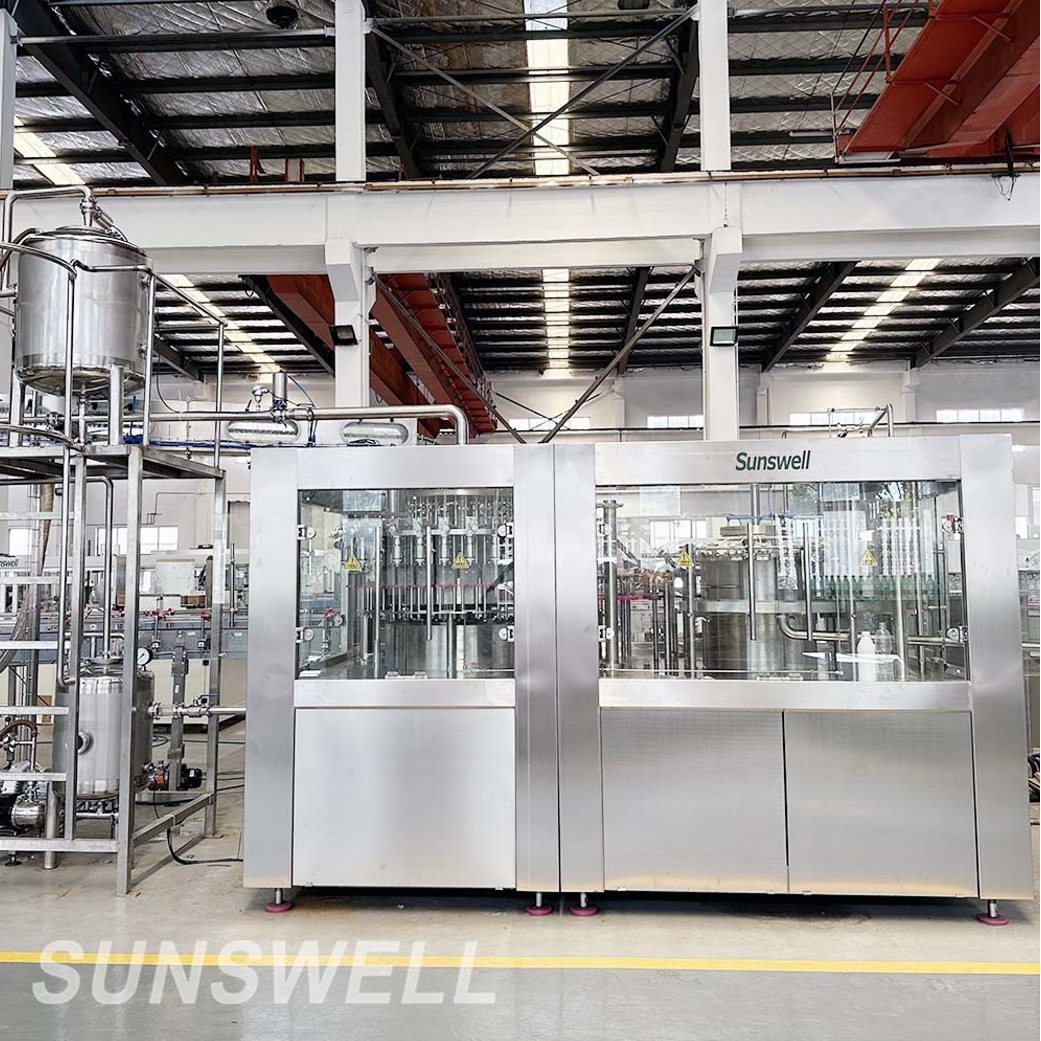

15000BPH Bottle Juice Filling Packing Whole Line
Filling & Sealing
Information
General description
3-in-1 hot filling monoblock is composed of rinser, filler and capper, which adopts and absorbs advanced technology and is manufactured according to juice/tea beverage production technical requirement. It uses outer-circulation pressure filling method with sound CIP cleaning function.
Technical parameters
Model: RXGF32-32-8
l Working position: Rinsing 32; Filling 32; Capping 8
l Rated capacity: 12,000BPH (450ml)
l Water rinsing pressure: 0.2-0.25Mpa
l Water consumption volume: 2.4m3/ hr
l Compressed air pressure: 0.7Mpa
l Air consumption: 0.8m3/ min
l Suitable bottle size: diameter Φ50~Φ96, height 150~310mm
l Main motor power: 4KW
l Installation power: 5.5KW
l Overall dimension: 3380×2580×2700mm (L × W × H)
l Weight: 6000Kg
