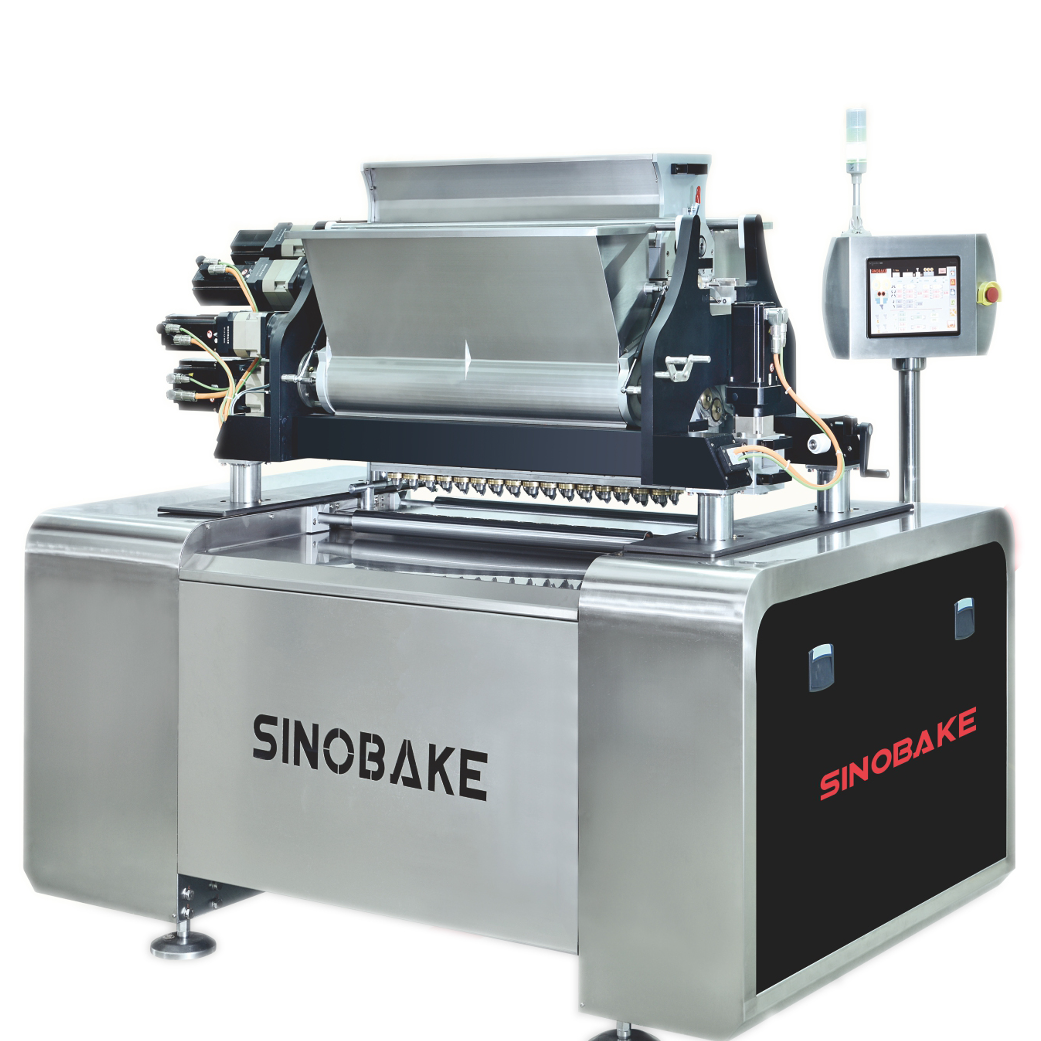

cookies machine
Bakery Equipment & Supplies
Information
Features: Design for three colors,two colors and one color depositor cookies, co-extruded cookies, wire cut cookies and filled cookies.
Parameters:
1) Working width:600mm / 800mm / 1000mm / 1200mm / 1500mm
2) Use the modular design, various function can quickly switch, operation simple and convenient;
3) Consist of quantitative pump device, dough forming weight control precision.
4) Servo motor adopts Schneider brand
5) Including 1X wire cut device, 1X press roller for centre filler two colors cookies, 1X cutting off device for extruded cookies.
6) The machine includes three sets of mould: one depositor mould,wire-cut mould,and tri-colors cookie mould and cut-off cookies mould(see the E-catalogue page19).
7) Cookies machine speed : wire-cut cookie 100 cuts/minute in max., depositor cookie 40times/minute in max., 2 colors with filled cookie 60 strokes/minute in max.8) Nozzles No.: 16 nozzles based on baked cookies≤Φ55mm
9) Die No.:16 / 18 / 20 /22nozzles based on baked cookies≤Φ45mm
10) Use Schneider brand electric parts and PLC interface control system
11) The port function module can be pulled out from the machine, wash by water, simple clean
