VideometerLab

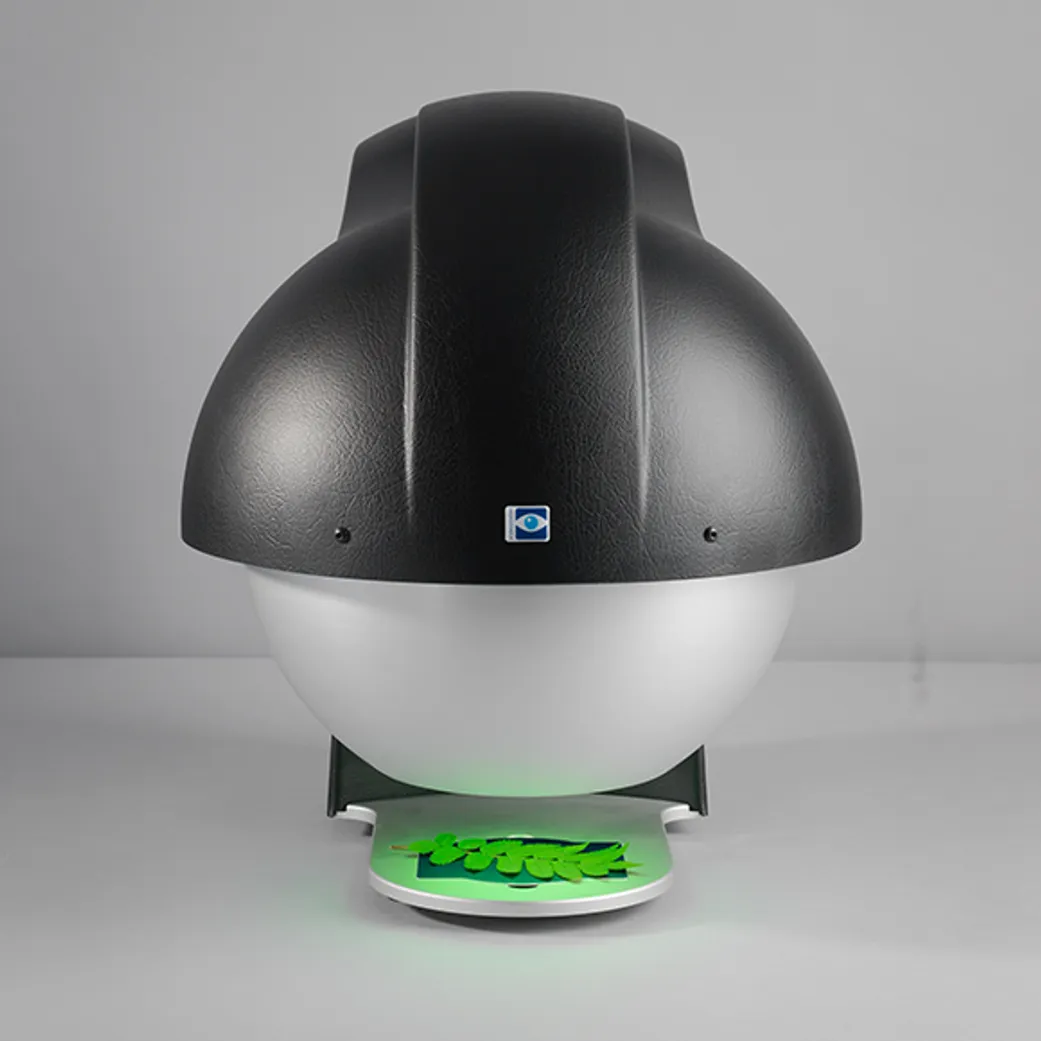

VideometerLab 4 is a spectral imaging instrument designed for fast and accurate determi-nation of color, texture, and chemical composition on surfaces up to 90*123 mm per image. The instrument is an easy-to-use system integrating illumination, camera, and computer technology with advanced digital image analysis and statistics. Using strobed LED technology VideometerLab 4 combines measurements at up to 20 different wavelengths into a single high-resolution spectral image. Every pixel in the image is a reflectance spectrum and the instrument may include UV, visual, and NIR wavelengths.Key Features and Advantages • Integrating sphere providing homogeneous and diffuse illumination. • Spectral imaging and quantitative analysis in 5-10 seconds. • 19-20 different wavelengths/illuminants. • Multispectral fluorescence option. • Autofeeder option for granular products. • 12.3 Mpixels per wavelength providing 120-360 million pixels/image. • Standardized instrument including easy-to-use instrument calibration. • Superior color determination compared to traditional RGB technology. • Automatic change of dynamic range, depending on the application. • Long lifetime of the light sources. Up to 100.000 hours. • Increased stability due to LED source technology. • Combined frontlight and backlight using optional backlights. • Automatic movement of illumination in relation to the sample. • Powerful exploratory software for R&D. • Recipe building tool for easy-to-use routine applications. VideometerLab 4
