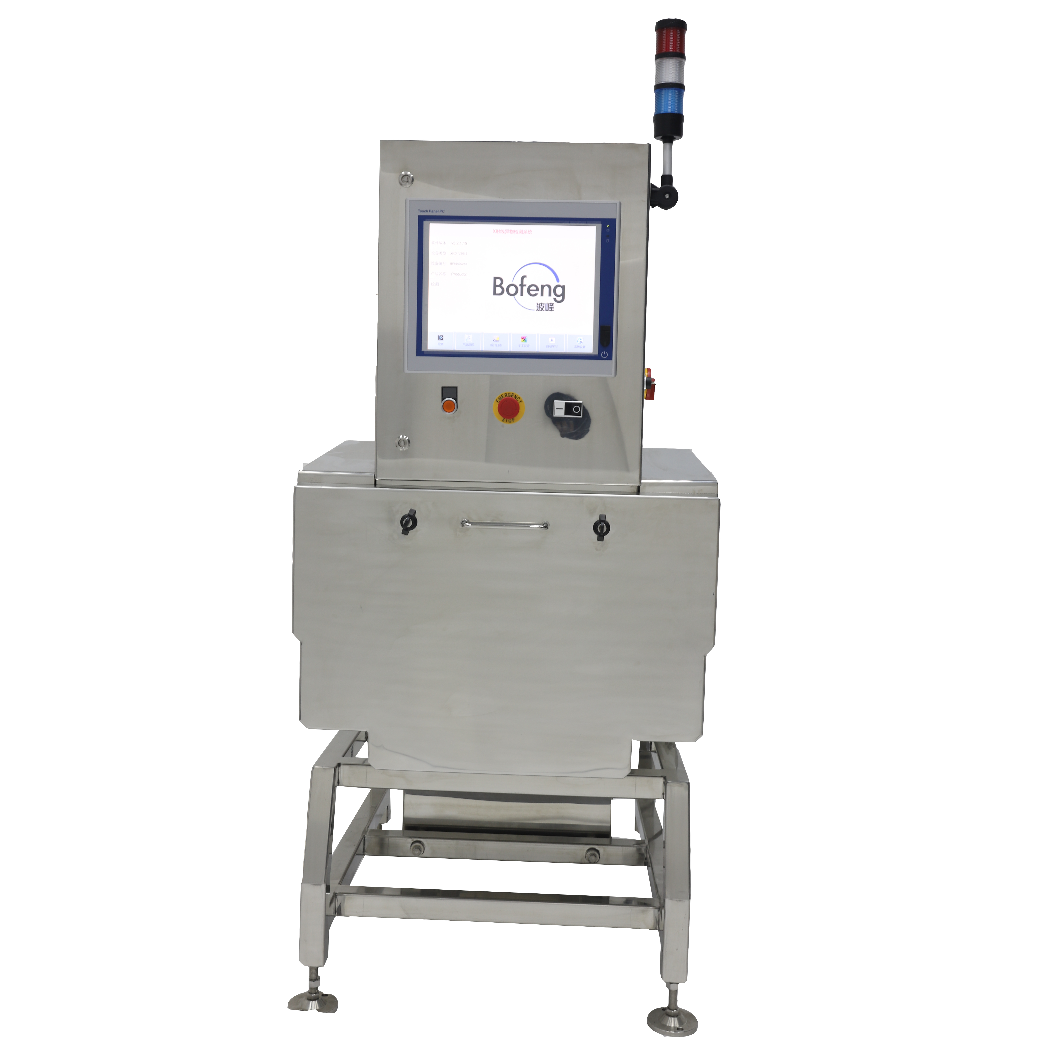

X-Ray inspection System
Inspecting & Checking
Information
X-R Inspection system1. Specification
Ø Built in quality, stable and durable components
Ø Particular graphic processing algorithm which increased contamination detectability
Ø UI is based on Windows OS which support multiple languages and easy operation
Ø Automatic products learning and parameters generation
Ø Multi-Points security sensor to prevent radiation leakage
Ø Easy for image files operation and export
Ø Connecting to various of rejects
Ø Fast conveyor belt release for daily clean
3. Purpose
Ø Fragment of metal, glass, stone, bone, rubble, plastic detection
Ø Especially for aluminium foil package detection
Ø Cost effect design
4. Technical specification
Item
MDC-V4015
Sensitivity
Metal ball: Φ0.4mm, Metal wire: Φ0.2 * 5mm,Quartz ball Φ1.5
Tube voltage
30-90kV
Tube current
0.2-3mA
Tube power
150W
Radiate leakage
Less than 1u Sv/h
HMI
15 inch touch screen
Belt width
420mm
Available detection width
Max.400mm
Recipe memory
Max.100
Conveyor payload
Max.10kg
Conveyor speed
10~60m/min
Reject
Air jet/push reject/flapper reject/drop reject
Alarm
Buzzer&lamp
Power supply
AC220V ,50-60HZ,single phase
Rated output
Appr. 1.2kw
Dimension
1048mm(L)*800mm(W)*1922mm(H)
Weight
200kg
Operational temperature
0-40°C, humidity 30-85% without condensation
Protection
IP66(conveyor)
Construction
304SUS, Polishing/brushed
