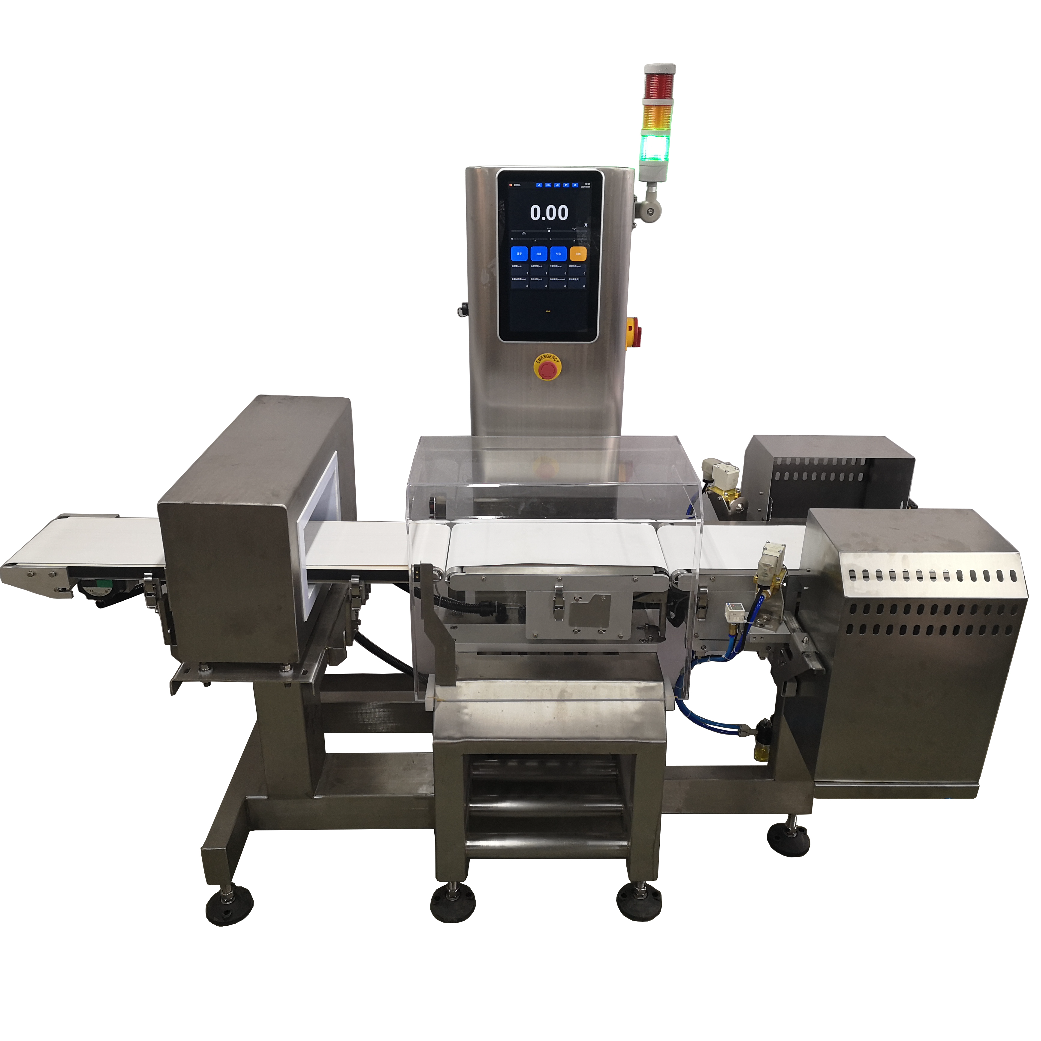

Metal detector&check weigher combo
Inspecting & Checking
Information
Metal Detector&check weigher combonation
1.. Application:
Applided to automatic online package detecting metal, weighing and sorting
2.Feature:
All in one stainless steel frame
Equipped with precise load cell and high speed DSP technology
Dynamic weighing compensation and zero tracking
100p product memory; Easy to edit and save
Fast preset shift, automatic product study
Directly Log output to USB flash disk
Industrial computer with Android system
Weight curve to easily look at weight changes in real time
Option of different frequency for metal detector
Suitable for the different product
Rejector type optional
Multi-language optional
3. Specification
Model
MDC-Combo II 400*100
Detection method
Electric Induction/Digital load cell
Tunnel size
400*100mm
Belt width
300mm
Working height
60mm
Sensitivity
Fe¢0.8,SUS¢1.5
Weighing range
6-1500g
Accuracy
± 0.5-1g
Minimum scale
0.01g
Belt speed
22~76m/m,adjustable
Product limit
250mm(length)*100mm(width)
Reject
Push reject
Operation
Touch screen,Android system
Alarm
Buzzer&lamp
Power supply
AC110/220V 50-60Hz
Other Standard Accessories
Windshield cover, photosensor
